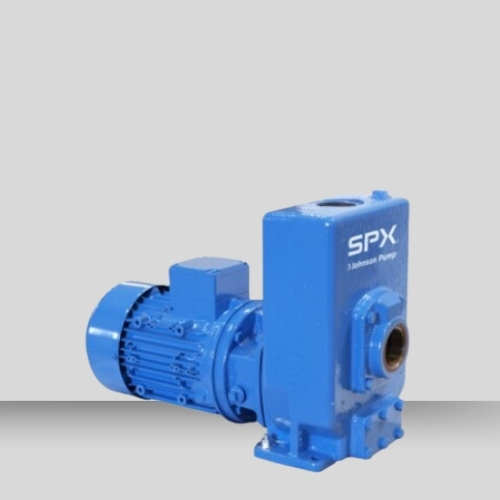

SPX Johnson KGE Self Priming Pump

Overview

KGE pumps are self priming centrifugal pumps with volute and radial (semi-open or closed) impeller, mounted overhung on the bearing pedestal. If a spacer type coupling is used, the pump can easily be dismantled without it being necessary to disturb the piping or to move the motor.

SPX Johnson KGE Self Priming Pump PDF

Technical Specification

Casing: Cast iron
Impeller: Cast iron, Bronze
Max. capacity: 100 m3/h
Max. delivery head: 60 m
Max. liquid temp: 95°C
Max. pressure: 8000 kPa (8 bar)
Max. speed: 3600 rpm

Features

Excellent self-priming ability
No non-return valve required in the inlet
Single unbalanced/balanced seals to EN 12756 (DIN 24960)
Mechanical seal with dry-running protection through oil bath quench
Ideal for handling contaminated liquids
Easy maintenance Back-Pull-Out principle
Flanges 32 and 40 threaded connection
Flange connection 50 and higher to ISO 7005 PN 16
Flange connection to ISO 7005 PN 20 (ANSI B16.5 150 lbs) optional
Greased for life roller bearings
Magnetic drive optional
Atex Certified
CE Certified

Suitable for

Clean and polluted liquids that are non-corrosive to cast iron, including water, oils, petrol and all kinds of chemicals. Draining building excavations, emptying ponds, ditches and swimming pools, water extraction for irrigation and watering, aboard ships as bilge, deck wash and general service pumps. Emptying pits and throughs containing wastewater, handling fuels, condensate extraction pumps.
